FS RACING 1/10 Scale Parts Supersonic 3665-3800KV 5-Axis Motor, FS RACING Parts

FS RACING 1/10 Scale RC Truck Parts

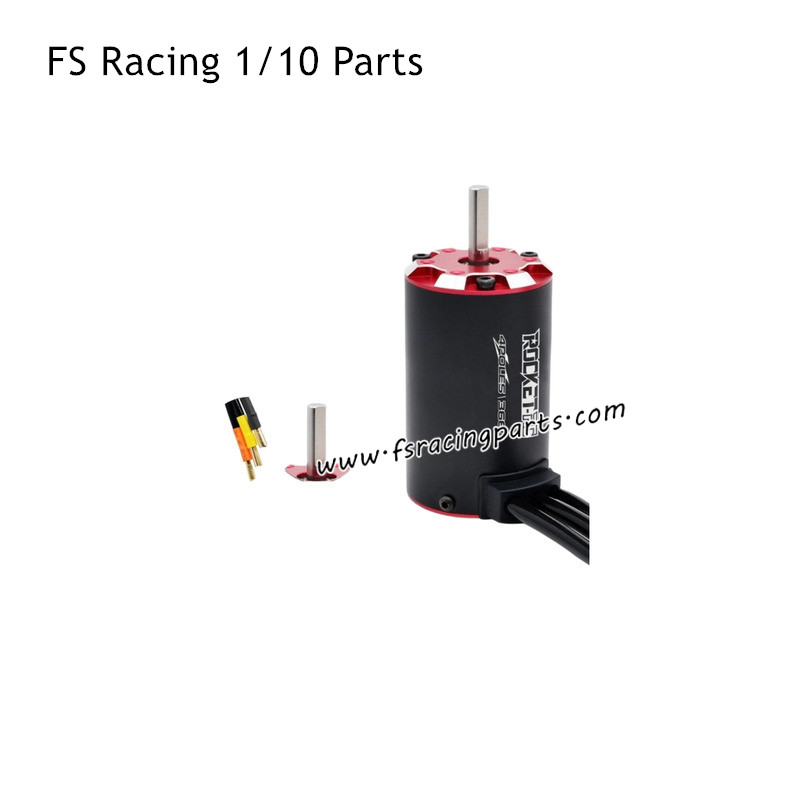

Item Name: Supersonic 3665-3800KV 5-Axis Motor;

Item Version: original;

Package: 1set;

Brand Name: FS Racing (FS Model, FSR);

Package Included:

1x Supersonic 3665-3800KV 5-Axis Motor (It uses a 4.0mm banana head as well as a 5mm shaft.)

KV Value: 3800kv

Maximum Power: 1800W

Suggested Voltage: 3S

Maximum Current: 130A

Suggested ESC: 110A/130A

Gold-plated Connector: 4.0mm

Motor Shaft Diameter: Medium 5.0mm

Number of Motor Poles: 4 Poles

Motor Size: 36x65mm

Maximum Rotation Speed: 50,000rpm

FAQ:

How do I properly install the Supersonic 3665-3800KV 5-axis motor?

• When installing the Supersonic 3665-3800KV 5-axis motor, you need to make sure that the motor shaft is aligned with the axis of the remote control, the fixing screws are tightened, and the wires between the motor and the body are connected correctly.
• A test run should be performed after installation to check that the motor runs smoothly.

What do I need to pay attention to when using Supersonic 3665-3800KV 5-axis motor?

• When using the Supersonic 3665-3800KV 5-shaft motor, you should check the motor bearings regularly to see if they need to be lubricated, keep the motor clean, and avoid dust and debris from entering the inside of the motor.
• After a long period of use, the motor temperature should be checked to avoid overheating.

Notice:

Supersonic 3665-3800KV 5-Axis Motor fit FS 1/10 series! Please check the details page.

If you have any questions, please contact us first.

If the player purchase error, the store will not be responsible. If you can have any questions, please contact us.
